MADMaN's 1991 VX...SO FAR
« on: January 31, 2015, 12:23:00 AM »

It all starts with a spark of inspiration!

Something small,Not something that shows itself through clear origins, but if you squint your eyes you can just make it out.

I was happy riding around on my Yamaha XV250 Virago. Great fuel economy, awesome handling and a rumble from the exhaust any previsional ride would love.
But once off my "P's", it's safe to say, I need something that really gets the adrenaline pumping.

After trolling through the local Gum Tree Adds (Free classifieds) I stumble across a Kawasaki GPZ 1000. $500! Lets go take a look!
So I hitch on the trailer and head off.
We come up with some rules on what would be a "SURE FIRE BUY"
or a
"HELL NO STAY CLEAR!"
Dose it start?
Dose it roll in gear?
Is there rubber on the back wheel?
(We all know that 1000 get used as burnout bikes right!)

It turned out to be a mess..........coils dont work, radiator pipes missing, seat missing, MASSIVE SCRATCH DOWN CRANK CASE.
and yes rear tyre bald as Peter Garrett's head (Lead vocalists for Midnight Oil, trust me his bald!)
I politely said thanks but no thanks and headed home.

I really had to get rid of the XV250 before I made my next purchase so I decided to put the next bike on hold.

That wasn't to be!

I started to window shop, which turned out to be a bad idea.
I have always liked V Twins, the sound the rumble, the stigma that all V Twin riders had ties to outlaw bike gangs.
But I also like that naked look, No fancy race faring, NO glossy paint and NO bullshit!

So I narrowed my search down to V twin 800cc plus........BAMN there she was.
The VX800.
I was shocked at what I had seen, I thought someone had shoehorned a VTwin into a Suzuki sports bike and taken off all the farings.

I stared my google search and got as much info on the bike as I could, after which I just had to have this bike.

So I headed to the owners house to see this crazy feat of engineering in the flesh.
(Being total giddy with excitement I may have overlooked some of the bikes short comings which we will discus at length later in the topic)

The owner had bought the bike new in 1991, loved ever kilometre of its 146.000KLM on the clock. He was very emotionally attached to the bike, but being in his 75th year the last trip for rego would be its fate. He just couldn't handle the weight of the bike and in his words
"If I was to drop the bike on myself I'd have to call the wife for help".

After a long chat I couldn't leave without the bike. He had $1600 (knowing the bike was well worth that price) I couldn't leave without a small deal, he said
"make it $1500 and its yours" I shock his hand  and then loaded up the bike.



NOW ALL THE FUN BEGINS............OR DOES IT?

Just from having a quick look over the bike it needed.....
New rear disc break - Current disc break was well past minimum wear



New Tires - Flat spot in the centre of the rear wheel looked like it had been ridden in an upright position...even through corners
New paint - The clear coat had lost its battle with the elements and the paint would have to be redone.
Front Forks - Seals replacing
Genral clean and back on the road





Pretty much everything Ive taken off has needed repairing or replacing.

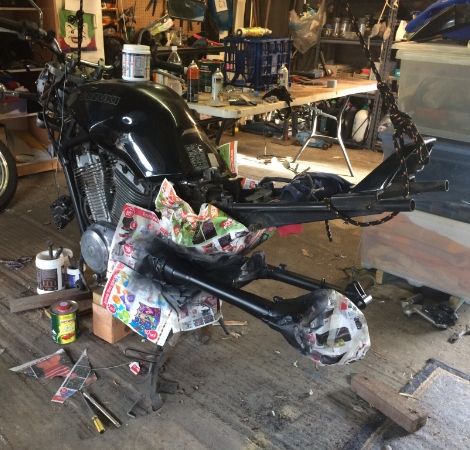

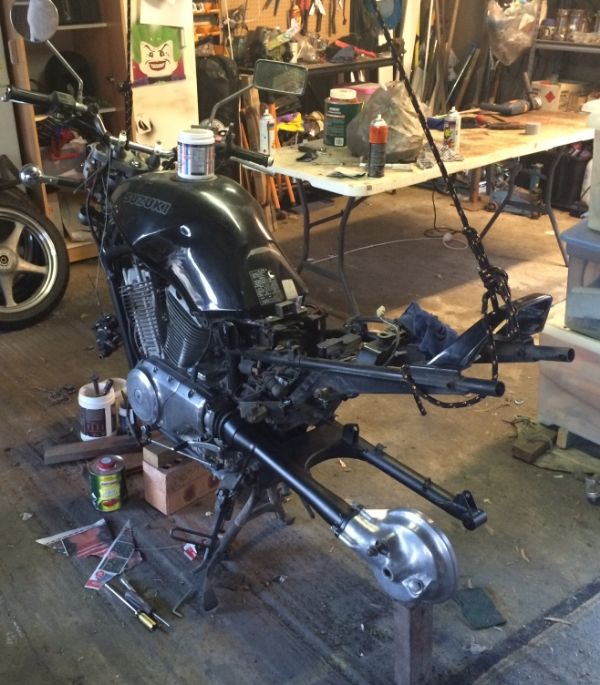

So the bike gets set up for the rebuild!

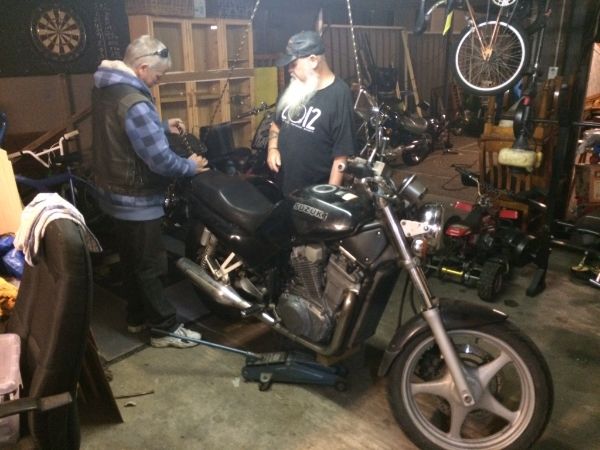

Always good to have family that can help when the gears get moving.
and its always good to see the younger family getting involved.
We pulled apart the forks in what was meant to be a day job with mates to fit new seals.



But once taken apart........we found this!

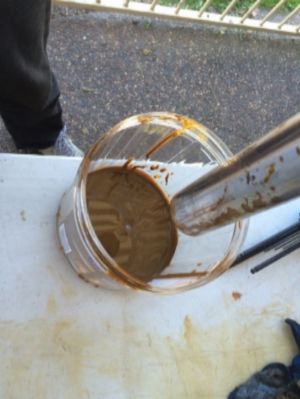

Yes......someone had replaced the fork oil with Peanut Butter



And what I didn't find.

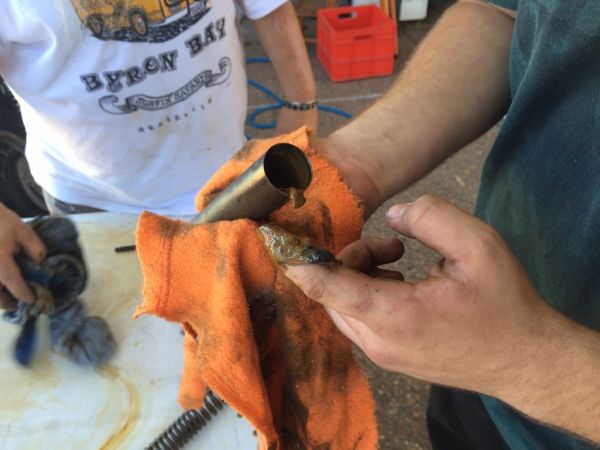

Turns out that this fork had been repaired and it was a shoty repair at that.
The fork seal was not correct and it was also missing the oil lock piece.



So I had to order the part and wait up up to 2 weeks for it to arrive.

Its starting to get out of hand with what needs replacing and my budget is growing by the spanner turn.
The breaks were the next to come under fire

I was just going to clean the brakes and paint them before being fitted back on the bike.
That wasn't to be. I found that someone had removed the breaks with force and not only damaged the seals but scored the pistons.

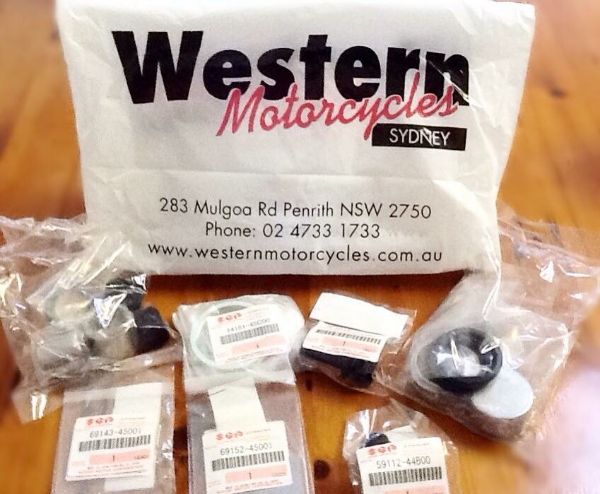

After trying in vain at a local Suzuki dealer in my home town. I ordered a break rebuild kit from a dealer with an online store over 250klms away. They were more then happyl to take my money and give me great customer service in recipt of parts.

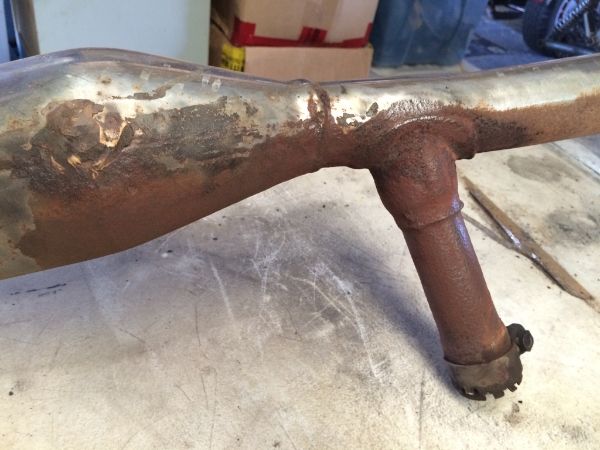

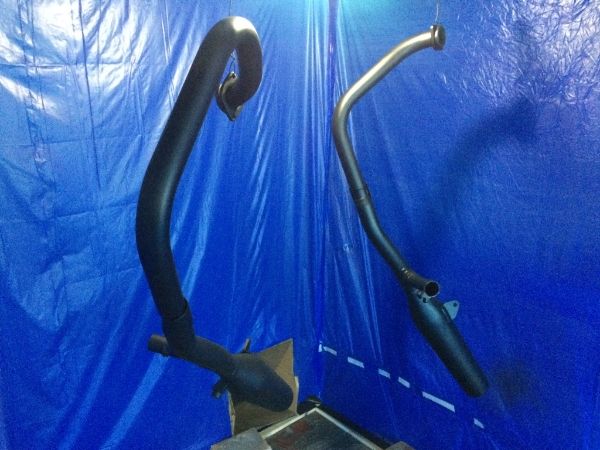

As the exhaust was a little neglected, I decided to take them off, clean them and give them a coat of paint.
Turns out they're was some muffler putty used to repair a hole. As we cleaned away as much of the rust as we could a few more holes appeared. Im aware that I probably should replace these but I need to scrap past rego first then Ill head to the wreckers for header pipes and new aftermarket mufflers.





Ive now coated the exhaust in heat paint. Just need them back on the bike and bake the paint on.

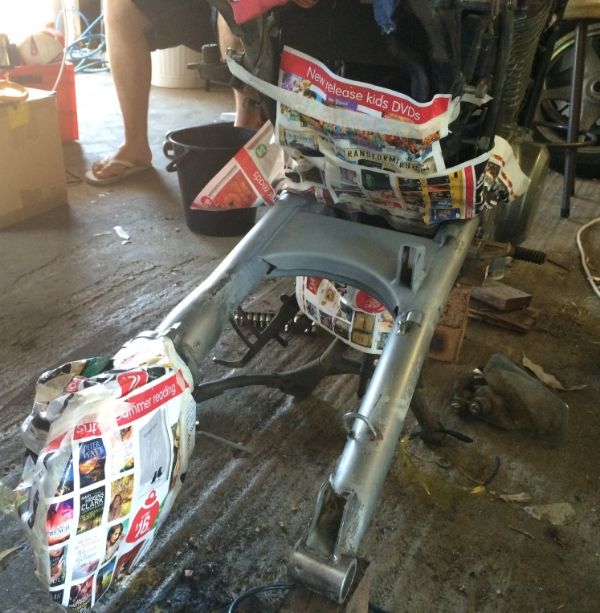

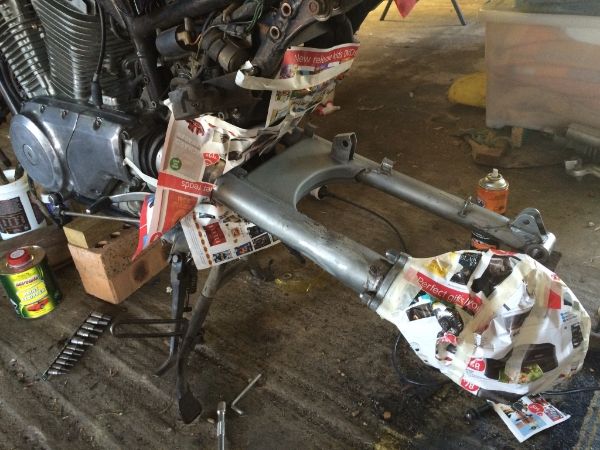

While the exhaust, wheels and body parts are off I thought I would clean and paint the swing arm.

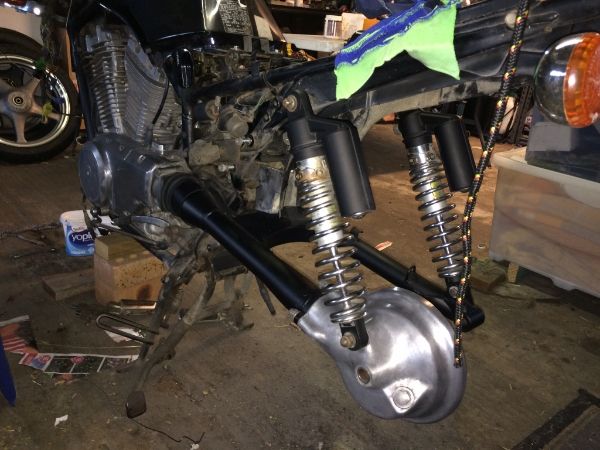

Springs painted and back on.

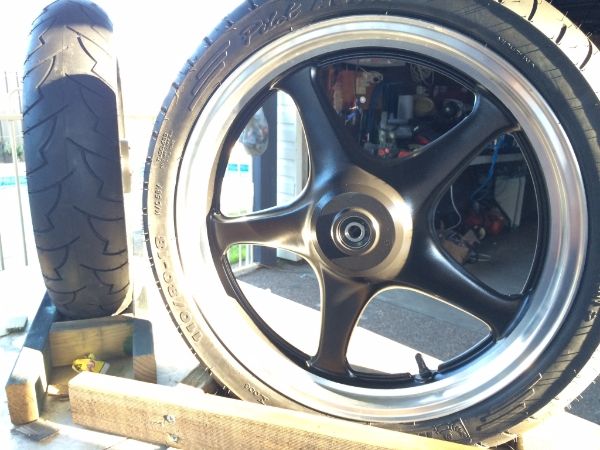

I decided to paint the bike wheels black with a polished outer edge.

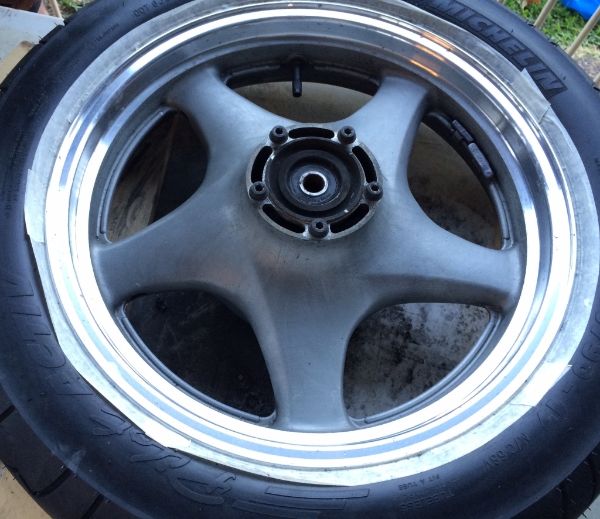

We paint stripped the edge and cleaned the wheels

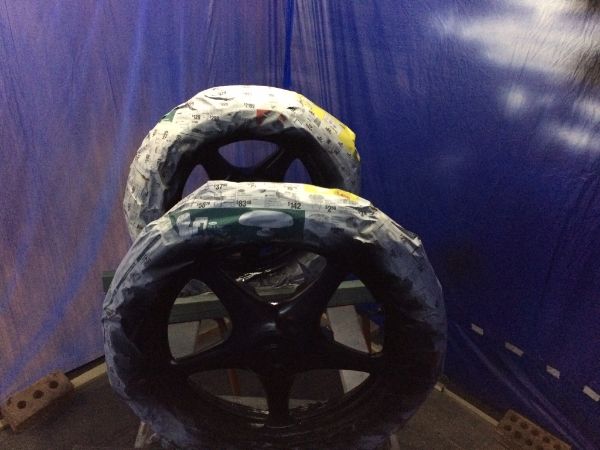

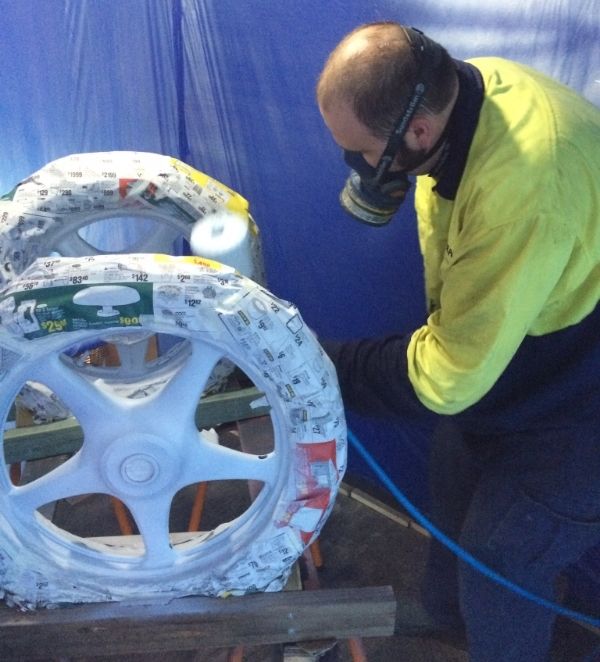

Finally got the painting booth and tyres masked up and ready to paint



UNDERCOAT!



TOPCOAT............



BLACK



OK.
Far from finish and way from road worthy. I decided to have a look at the TOP 10 tips when buying a VX on the forum, most of which my bike has issues with.

Ive repaired the petcock and it should stop the fuel leak. At 5000klm from new, the bikes motor had the dreaded leaky petcock syndrome and it was replaced with a new one under warranty. and retro fitted the vacuum petcock.

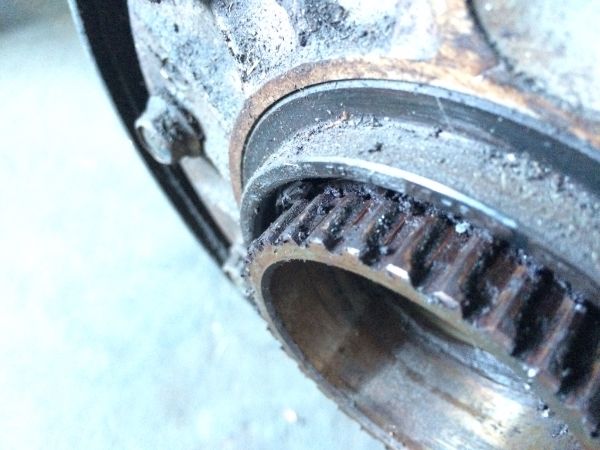

I also decided to check the final drive............DOH!

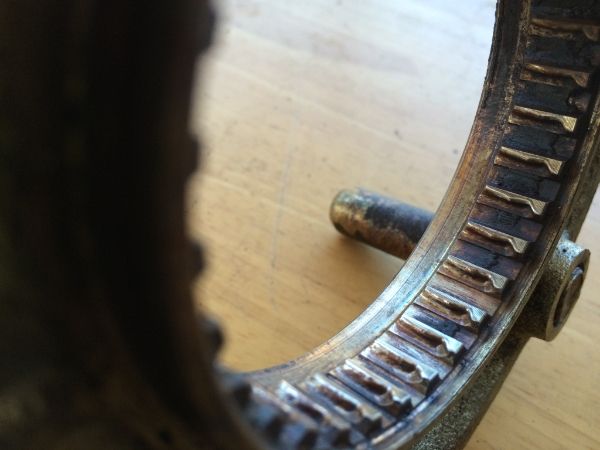

The screw side looks like I can ride it about another 50,000klm



but the final side looks like I could get away with 20,000klm.



As you can see, lack of regular maintenance is this bikes biggest killer. The grease in the final drive looks like it might have been there from factory. As these parts are quite expensive, I will just have to proceed until its completely finished.

This brings us to the halfway mark on my build. Hope you have enjoyed the photos so far and hope that you stick around to see the final product.

Cheers
MADMaN
